WIRE EDM

Fazekas Kft. – FANUC ALPHA 1C WIRE EDM

Technical data

Travel range (x, y, z) 520 x 370 x 300 mm
max. work piece size (x,y,z) 790 x 730 x 300 mm
max. work piece weight 650 kg
U, V axis travel range +/-60 mm
Auto wire feed yes
Submerged cut yes
Cooling unit yes

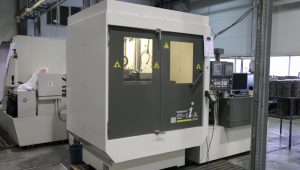

Fazekas Kft. – FANUC C600iA WIRE EDM

Technical data

Travel range: X: 600mm

Y: 400mm

U: +-100mm

V: +-100mm

Z: 310mm

Controller: FANUC 31i-WB
Work piece size: 1050x820x300
Max. load: 1000 kg
Max. wire diameter: 0,10~0,30mm

0,05~0,30mm

Spool weight: 16 kg
Machine Height: 2160mm

Width: 2440mm

Length: 2740mm

Weight: 3000 kg
